Understanding Veeam ONE 9.5 Deployment Types

KB ID: 2179
Products: Veeam ONE
Version: 9.5
Published:
Last Modified: 2016-11-21

Challenge

Understanding the difference between Optimized for Typical Deployment, Optimized for Advanced Scalability Deployment and Backup Data Only data collection modes.

Cause

Data collection mode determines what metrics Veeam ONE will collect, and specifies the product configuration in a number of areas. Choosing an appropriate data collection mode allows you to optimize monitoring and reporting performance and improve user experience in Veeam ONE.
You can choose of the following Veeam ONE data collection modes:

  • Optimized for Typical Deployment mode is recommended for small to medium environments up to 100 hosts and 1500 VMs. In this mode, Veeam ONE collects all inventory, configuration and performance metrics, and makes collected data available in dashboards, reports and alarms. This mode provides the greatest data granularity level, but results in a greater load on the Veeam ONE server and a larger size of Veeam ONE database.
  • Optimized for Advanced Scalability Deployment mode is recommended for large environments with more than 100 hosts and 1500 VMs. In this mode, Veeam ONE collects all metrics required for alarms and reports. This mode provides a lesser data granularity level than the Typical Deployment mode, and results in a lower load on the Veeam ONE server and a smaller size of the Veeam ONE database.
  • Backup Data Only mode is recommended for users who want to focus on Veeam Backup & Replication monitoring and reporting, and do not need a deep visibility of the virtual infrastructure. In this mode, Veeam ONE collects all inventory, configuration and performance metrics from Veeam Backup & Replication servers. It also collects inventory and configuration metrics from virtual infrastructure servers, but skips virtual infrastructure performance metrics. As a result, Veeam ONE dashboards, reports and alarms display backup-related data only; for VMware vSphere and Microsoft Hyper-V objects, performance data is not available. This mode results in the least possible size of the Veeam ONE database and the lowest load on the Veeam ONE server.

Solution

To switch between the modes:

  1. Open Veeam ONE Monitor.
  2. On the toolbar, click Options and select Server Settings. Alternatively, you can press [CTRL+S] on the keyboard.
  3. Open the Other Settings tab.
  4. In the Support utility section, click Launch.

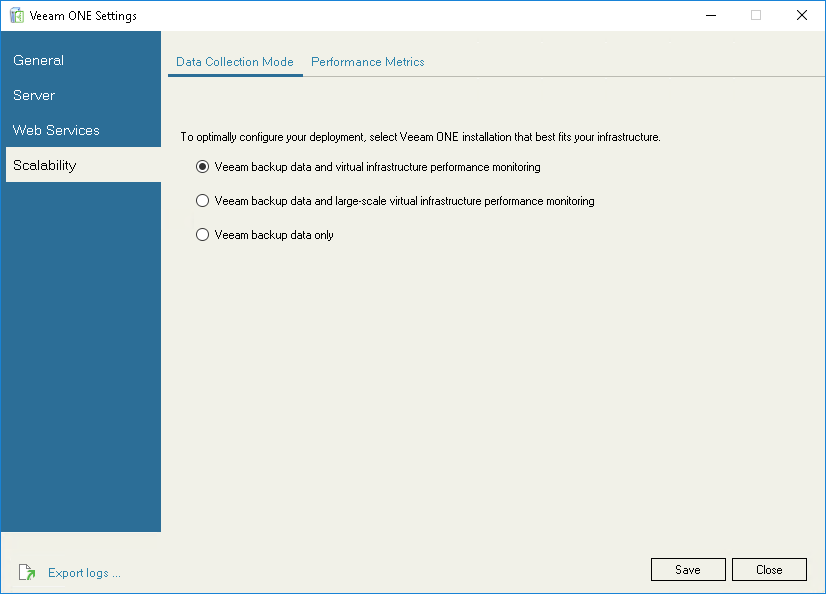

  5. In the Veeam ONE Settings menu, select Scalability.
  6. Choose the necessary data collection mode and click Save.
  7. Restart Veeam ONE Monitor Server and Veeam ONE Reporter Server services.

NOTE that the previously collected data will not be revisited.

More Information

For the list of settings and metrics affected by the deployment mode change, please refer to this document.

If you have any questions, contact Veeam Support.
