How to Expand Backup Heatmap Widget From 12 Hours to 24

KB ID: 4526
Product: Veeam Backup & Replication | 12.1
Veeam ONE | 12.1
Published: 2023-12-13
Last Modified: 2023-12-13
mailbox
Get weekly article updates
By subscribing, you are agreeing to have your personal information managed in accordance with the terms of Veeam's Privacy Notice.

Cheers for trusting us with the spot in your mailbox!

Now you’re less likely to miss what’s been brewing in our knowledge base with this weekly digest

error icon

Oops! Something went wrong.

Please, try again later.

Article Applicability

This article documents changing the Backup Heatmap time scale in the Analytics Dashboard of the Veeam Backup & Replication Console in version 12.1.

*Please note that the heatmaps in the view are only available if Veeam ONE is integrated with Veeam Backup & Replication.

Purpose

This article documents how to change the Backup Heatmaps from their default 12-hour scale to a full 24-hour.
Before
Default, 12-Hour Scale

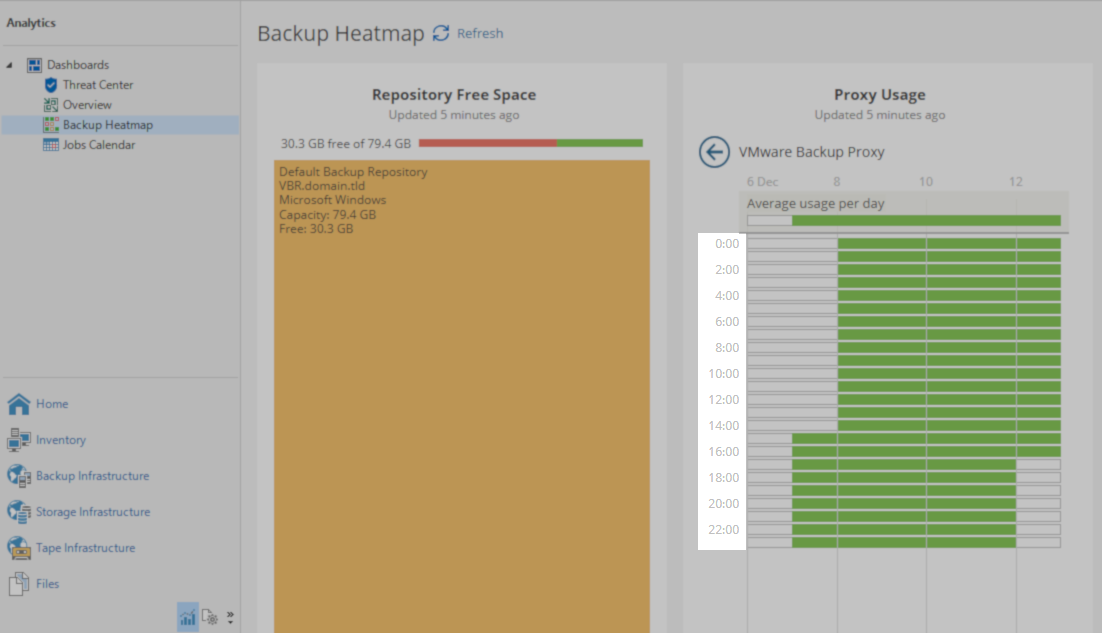

After
24-Hour Scale

Solution

Affects Currently Added Veeam Backup & Replication Servers
This change affects only Veeam Backup & Replication servers that are currently added to Veeam ONE. If new Veeam Backup & Replication servers are added at a later time, the script must be rerun to update the heatmap for those servers.

To change the Backup Heatmap scale, execute the following SQL query against the Veeam ONE database using SQL Management Studio (this procedure is documented in KB4414).

Note: This SQL Query to change the heatmap scale can be applied to the Veeam ONE database without stopping and starting the Veeam ONE services.

;with layout_defaults as (
select
w.ID, x.LayoutType, x.PositionX, x.PositionY, x.Width, x.Height
from [reporter].[ExtensionItemWidget] w
inner join (
values
('RepositoriesFreeSpace', 3, 0, 0, 1, 2),
('ProxyUsage', 3, 1, 0, 1, 2),
('RepositoriesUsage', 3, 2, 0, 1, 2)
) as x(TemplateName, LayoutType, PositionX, PositionY, Width, Height)
on ([x].[TemplateName] = [w].[Name])
),
dashboards as (
select ID
from [reporter].[Dashboard]
where [Deleted] is null and
[IsSystem] = 1 and
[IsBuiltIn] = 1 and
[ExtApplicationId] is not null
),
update_layout_cte as (
select
WidgetId = w.ID
, x.LayoutType
, x.PositionX
, x.PositionY
, x.Width
, x.Height
from [reporter].[DashboardWidget] w
join [dashboards] d on ([d].[ID] = [w].[Dashboard])
join [layout_defaults] x on ([x].[ID] = [w].[ExtensionItemWidget])
)

merge [reporter].[DashboardWidgetLayout] as Target
using [update_layout_cte] as Source
on (Source.WidgetId = Target.WidgetId)
when matched then update set
Target.LayoutType = Source.LayoutType,
Target.PositionX = Source.PositionX,
Target.PositionY = Source.PositionY,
Target.Width = Source.Width,
Target.Height = Source.Height

when not matched by Target then
insert (WidgetId, LayoutType, PositionX, PositionY, Width, Height)
values (Source.WidgetId, Source.LayoutType, Source.PositionX, Source.PositionY, Source.Width, Source.Height);
Click Refresh on the Backup Heatamp view to update the page.
