In the nworks Web UI, some monitored objects are grey or missing at all. The Collector is installed on Windows 2003 Server.
Standard troubleshooting steps do not help, the SCOM agent log on the Collector server contains the following error:
WMI Error: 0x8004106C

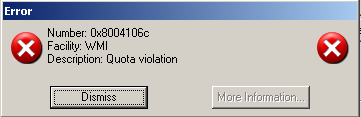

When you try to use the WBEMTEST utility you get the same WMI error, you get the following message:
WMI: Quota violation
Microsoft Windows Server 2003 has the memory quota of 128 MB per host.
Microsoft Windows Server 2008 has the memory quota of 512 MB per host.
Open the Start menu and run wbemtest.exe.
In the Namespace field, type root.
Click Enum Instances.
In the Class Info window, enter the following superclass name: __ProviderHostQuotaConfiguration. Click OK.
Note: the superclass name must start with a double underscore.
In the Query Result window, double-click the __ProviderHostQuotaConfiguration=@ record.
In the Object Editor window, double-click the MemoryPerHost parameter.
In the Value field, type 536870912 (512 MB).
Click Save Property.
Click Save Object.
Restart the computer.
