Troubleshooting Guest Processing "Test Now" issues

KB ID: 3225
Product: Veeam Backup & Replication 11, Veeam Backup & Replication 10, Veeam Agent for Microsoft Windows 5.0, Veeam Agent for Microsoft Windows 4.0
Published: 2020-07-23
Last Modified: 2021-08-13

Challenge

Skip to the Solutions section

Note: The solutions to RPC and Win32 errors apply to the Credentials Tester when used with vSphere, Hyper-V, and Veeam Agent for Windows. The VIX Connection issues section of this article is related to VMware only.

When using the 'Test Now' feature on the Guest Processing tab of a job an error or warning is observed.

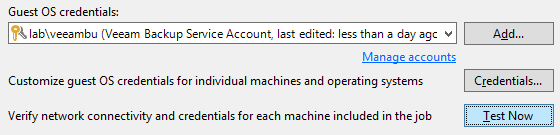

test now button in ui

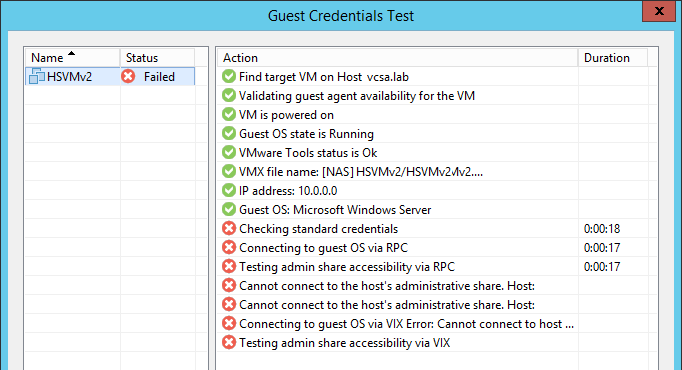

test now errors

Regarding Warning in VMware Environments

In VMware environments, Veeam Backup & Replication can use two methods to connect to a guest: RPC or VIX. If RPC is testing successfully, it is generally acceptable for the VIX test to fail as it will not likely be used. However, if it is desired to have VIX succeed, please see the relevant section at the bottom of the solutions section.

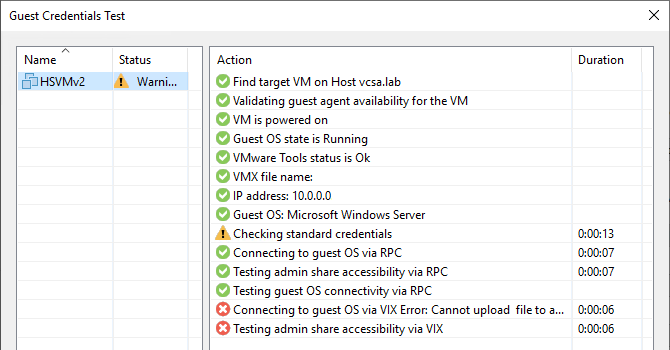

VIXWarning

Solution

Considerations and Limitations

 Important notes about the Account shown in the error:

  • In some environments, there may be multiple entries in the Credentials Manager for the same account. It is advisable to review the credentials manager and remove duplicate entries. See: https://www.veeam.com/kb3224

  • If the account specified in the error is different from what is configured on the Guest Processing tab, check under the [Credentials...] button on the Guest Processing tab to check if specific credentials have been set.

  • For VM Backup and Replication jobs (VMware or Hyper-V), the account specified to connect to the Guest is always the account used to login to the SQL instance. So the Credentials Tester can show good for a SQL server, but the SQL-related tasks (Truncation, Transaction Log Backup) may fail if the account being used does not have the correct permissions in SQL

 This is not an exhaustive list of potential errors. If you have an error not listed here, please use the "KB Feedback/Suggestion" button at the bottom of this article to notify Veeam Support.

If the error you see is not listed here and you need help, please open a support case.

Testing admin share accessibility via RPC Errors

The following is a few of the possible errors which may be seen in the Guest Credentials Test in the line after "Testing admin share accessibility via RPC"


User-added image

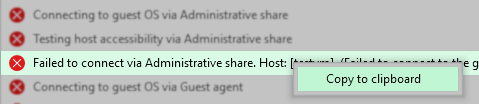

Right-click on the line item and copy it to the clipboard so that you can paste it somewhere else to see the full error.

Win32 error:The network path was not found.; Code: 53
Cannot connect to the host's administrative share. Host:  [DC01]. Account: [lab\veeambu].;Win32 error:The network path was not found.; Code: 53;


This issue is covered in https://www.veeam.com/kb1230

Win32 error:Access is denied.; Code: 5;
Cannot connect to the host's administrative share. Host: [DC01]. Account: [HSVMv2\veeam].;Win32 error:Access is denied.; Code: 5;



  • Confirm that the account assigned is a member of the Administrators group on the server being protected.
  • This issue is covered in detail here: https://www.veeam.com/kb4185
Win32 error:The user name or password is incorrect.; Code: 1326;
Cannot connect to the host's administrative share. Host: [DC01]. Account: [lab\veeambu].;Win32 error:The user name or password is incorrect.; Code: 1326;



Check that the account specified can connect to the Host specified in the error. If that account should be able to connect, open the Credentials Manager in Veeam Backup & Replication and update the password.

Win32 error:The trust relationship between this workstation and the primary domain failed.; Code: 1789;
Cannot connect to the host's administrative share. Host: [DC01]. Account: [lab\veeambu].;Win32 error:The trust relationship between this workstation and the primary domain failed.; Code: 1789;



Test logging into the Host specified in the error with the Account specified in the error. Likely the same error will occur.

To correct this error, repair the trust relationship in Active Directory.





Connecting to guest OS via VIX Errors

VIX is a network-less alternative method for Veeam Backup & Replication to connect to a guest. This functionality only exists when processing a VMware Virtual Machine.

Cannot upload file to admin share
Connecting to guest OS via VIX Error: Cannot upload file to admin share [C:\Windows]. Could not create guest directory [C:\Windows\VeeamGuestHelpersTest] Could not create guest [vm-431254] directory [C:\Windows\VeeamGuestHelpersTest] Could not invoke guest operation Unable to access file C:\Windows\VeeamGuestHelpersTest



This issue is covered in https://www.veeam.com/kb1788

Could not validate ... credentials for guest
Connecting to guest OS via VIX Error: Cannot connect to host [vcsa.lab] over web services. Login: [vsphere.local\administrator]. Guest Login: [lab\veeambu].
Could not initiate Web Service connection
Could not initiate guest virtual machine [vm-431254] with user [lab\veeambu]
Could not validate host [https://vcsa.lab/sdk] credentials for guest [vm-431254] user [lab\veeambu]
Could not invoke guest operation
A general system error occurred: vix error codes = (1, 0).



This error means that when Veeam attempted to connect to the guest via VIX the account provided was unknown to the guest.

Possible causes include:

  • password for the account is wrong.
  • account specified does not have ability to connect to the guest.
  • account being used is a domain account and the guest is not on the domain
  • trust relationship between the guest and the domain is broken
