How to test manually mounting the Veeam vPower NFS Datastore

KB ID: 1284
Product: Veeam Backup & Replication | 9.5 | 10 | 11
Published: 2011-10-06
Last Modified: 2021-11-12
Get weekly article updates
By subscribing, you are agreeing to have your personal information managed in accordance with the terms of Veeam's Privacy Notice.

Cheers for trusting us with the spot in your mailbox!

Now you’re less likely to miss what’s been brewing in our knowledge base with this weekly digest

error icon

Oops! Something went wrong.

Please try again later.

Challenge

This article documents manually mounting the vPower NFS Datastore using the vSphere Web Client.

The steps of this article are only intended as a troubleshooting step to help in investigating and isolating an issue with vPower NFS-based restores failing.

Solution

Stage 1: Information Collection

To add an NFS Datastore to an ESXi host you will need to specify Datastore name, Folder, and Server. This stage of the article will document where to find this information.

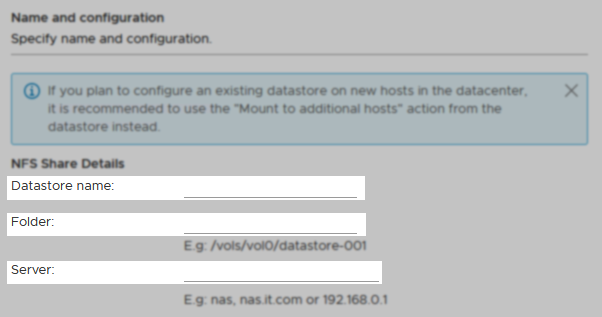

add nfs datastore blank
Datastore name

The Datastore name used by Veeam Backup & Replication is always the same as the 'Folder' without the leading forward slash. See Folder entry.

Folder

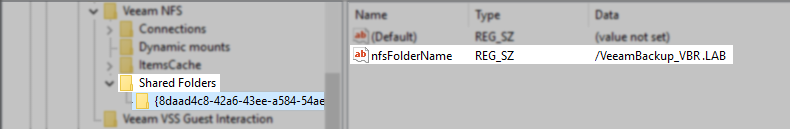

The Folder name is stored in the registry of Mount Server under the value nfsFolderName in the key:

HKLM\SOFTWARE\WOW6432Node\Veeam\Veeam NFS\Shared Folders\{GUID}

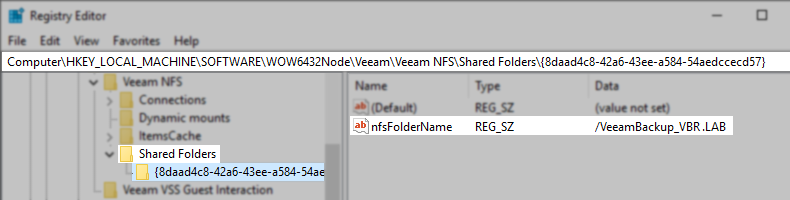

nfsFolderName value in registry
Server

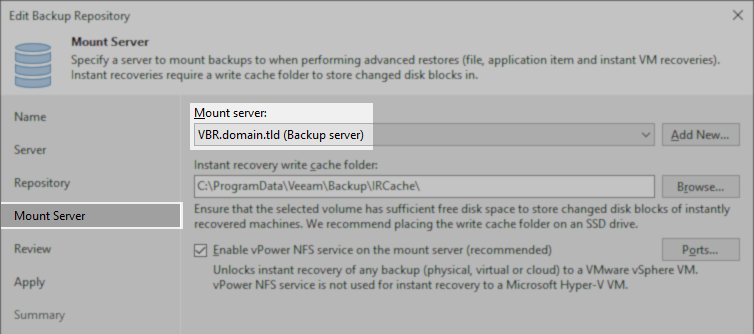

For this, specify the IP Address of the Mount Server associated with the repository where the backup files are located.

Stage 2: Disable vPower NFS IP Authorization

Starting with Veeam Backup & Replication 9.5 U4, access to the NFS Share is restricted so that it is only accessible by the ESXi host during restore operations.

When testing the manual mounting of the vPower NFS Datastore, the  IP Authorization system must be disabled to allow the inbound connection from the ESXi host to the Mount Server. To disable the IP Authorization system, create the following registry value on the Mount Server associated with the repository where the backup files are stored.

Key Location: HKLM\SOFTWARE\WOW6432Node\Veeam\Veeam NFS\
Value Name: vPowerNFSDisableIPAuth
Value Type: DWORD (32-Bit) Value
Value Data: 1

After creating the above registry value, restart the Veeam vPower NFS Service.

This value disables built-in IP authentication for the vPower NFS Share and is only recommended for testing purposes. Remember to delete the value or set it to 0 after you are done testing.

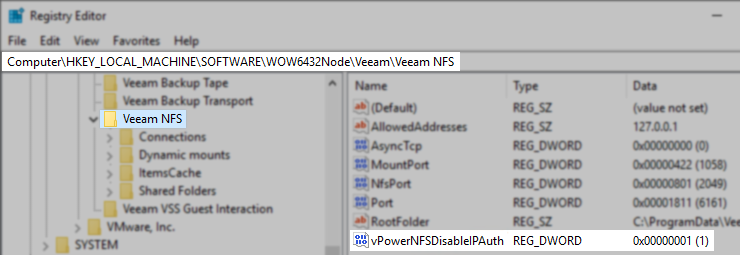

vPowerNFSDisableIPAuth Example

Stage 3: Manually add the VeeamBackup_ datastore

Note: The directions below document how to create an NFS datastore via the vSphere Client connected to a vCenter running vSphere 7.0. If the environment you are working with is running a previous version or does not have a vCenter, consult VMware documentation for creating an NFS datastore.

  1. Connect to the vCenter via the vSphere Client
  2. In the Hosts & Clusters view (ctrl+alt+2), locate the host specified during the restore operation.

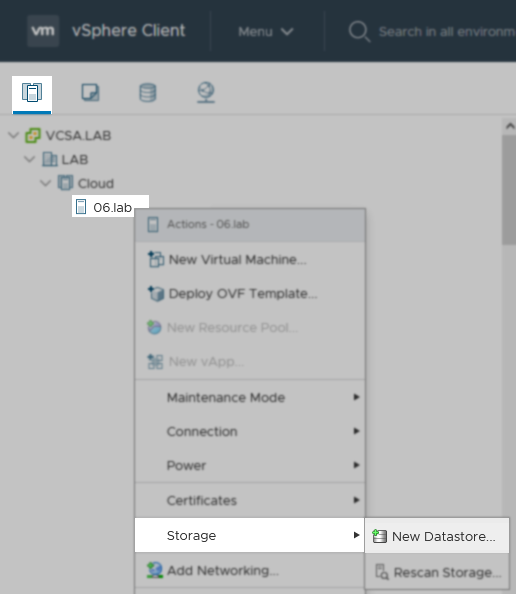

  3. Right-Click on the host. In the context menu under Storage, select New Datastore.

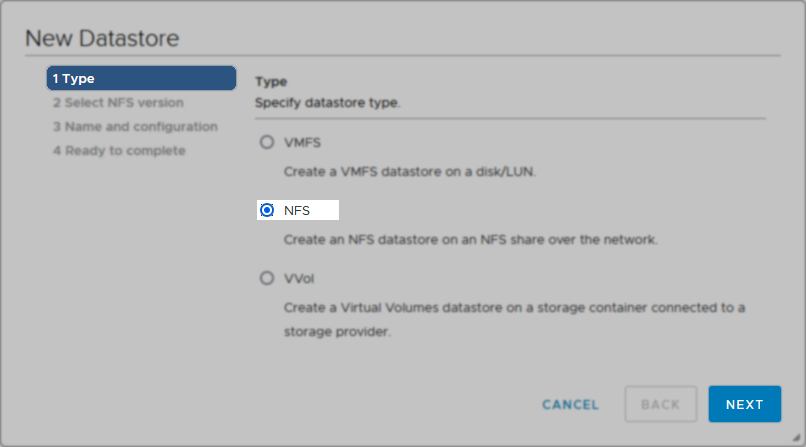

  4. Select NFS for the datastore type, and click Next.

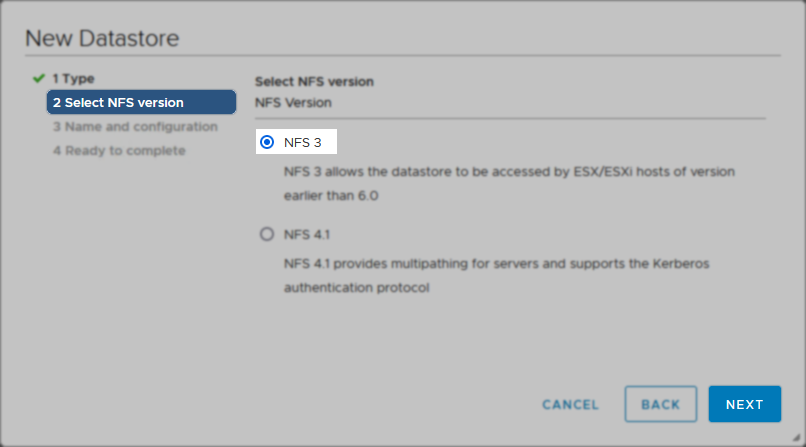

  5. In the New Datastore wizard that opens, select NFS 3, and click Next.

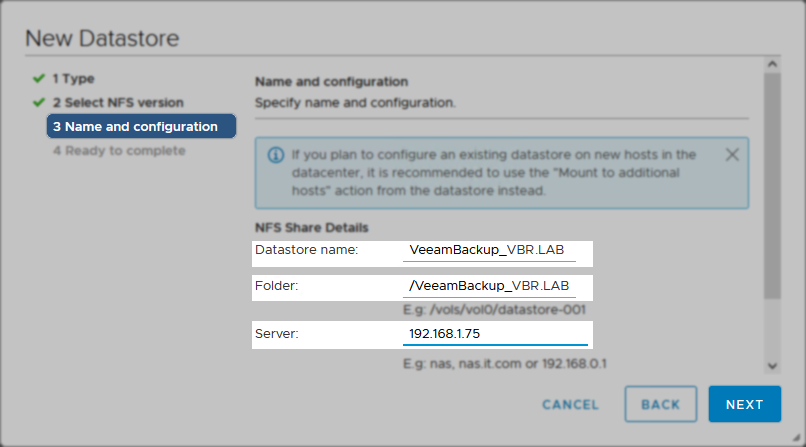

  6. On the next page, enter the details in Stage 1 of this article, and click Next.
    • Enter the Datastore name as the nfsFolderName value found in the registry without the leading forward slash.
    • Enter the Folder as it appears in the nfsFolderName registry value identified in Stage 1.
    • For Server, enter the Mount Server's IP address.

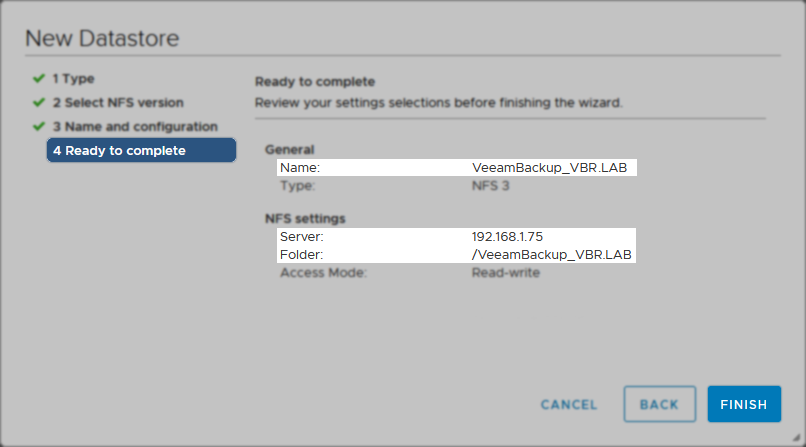

  7. Review the summary information and click Finish to create the datastore.
